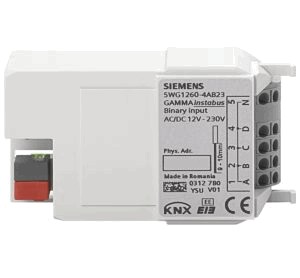

with 4 inputs for AC or DC voltages in the range of 12...230 V,
with a length of unshielded connecting cable per input of max. 100 m,
with screwless terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5mm²,
with freely configurable function per single input: switch status / binary value transmission, switching edge-triggered, switching on short / long pulse, 1-button dimming, 1-button solar protection control, 1-button group control (sequence control), 1-bit scene control, 8-bit scene control, 8-bit value transmission edge-triggered, 8-bit value transmission on short / long pulse, 16-bit floating point value transmission edge-triggered, 16-bit floating point value transmission on short / long pulse, 8-bit pulse counting without limit monitoring, 8-bit pulse counting with limit monitoring, 16-bit pulse counting without limit monitoring, 16-bit pulse counting with limit monitoring, 32-bit pulse counting without limit monitoring, 32-bit pulse counting with limit monitoring,
with freely configurable function per pair of inputs: 2-button dimming with stop telegram, 2-button solar protection control,
with selectable locking / releasing of each input by a locking object,
with transmission of the input objects after a change of status,
with configurable cyclic transmission of the input objects,
with bus-powered electronics,
with integrated bus coupling unit,
with bus connection via bus terminal block,
housing: plastic,
type of protection: IP 20,
dimensions (L x W x H): 86.5 x 47.8 x 36.2 mm,
as built-in device for mounting in a separately to be ordered Control Module Box AP 118 or Room Control Box AP 641,
