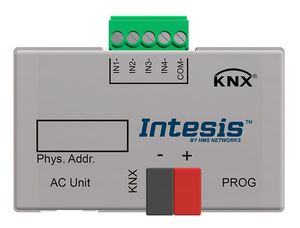

The Daikin-KNX gateway allows fully bi-directional communication between Daikin AC Domestic units and KNX installations.
Additionally, four potential-free binary inputs provide the possibility to integrate external devices, such as window contacts or presence detectors, that allows launching internal functions focused to improve energy efficiency.
FEATURES
- KNX certified.
- Configured by ETS standard configuration tool.
- Reduced dimensions allowing a quick installation inside the Air Conditioner unit.
- Offered all the required DPT objects to be compatible with all KNX thermostats in the market.
- Energy efficiency functions, such as -timeout-, -open window- or -Occupancy-. Costs related to HVAC systems in a building are one of the highest and these functions allow to reduce them.
- Smooth integration of KNX thermostats allowing the control of the AC unit by the own temperature sensor of the thermostat.
- Simultaneous control of the AC unit by the IR remote controller and by KNX.
- Total control and monitoring of the AC unit from KNX, including AC unit-s internal variables, running hours counter (for filter maintenance control) and error indication.
- Up to 5 scenes can be saved and executed from KNX.
La pasarela Daikin-KNX proporciona una comunicación totalmente bidireccional entre unidades domésticas de aire acondicionado de Daikin e instalaciones KNX.
Además, las cuatro entradas binarias sin potencial ofrecen la posibilidad de integrar dispositivos externos, como contactos de ventana o detectores de presencia, que permiten activar funciones internas centradas en la mejora de la eficiencia energética.
FUNCIONES
- Certificación KNX.
- Configurado mediante la herramienta de configuración estándar ETS.
- Dimensiones reducidas que permiten una instalación rápida dentro de la unidad de aire acondicionado.
- Incluye todos los objetos DPT necesarios para garantizar la compatibilidad con todos los termostatos KNX del mercado.
- Funciones de eficiencia energética, como «tiempo de espera agotado», «ventana abierta» u «ocupación». Los costes derivados de los sistemas de climatización en un edificio son unos de los más elevados, y este tipo de funciones permiten reducirlos.
- Integración sencilla de termostatos KNX que permiten el control de la unidad de aire acondicionado mediante el sensor de temperatura del termostato.
- Control simultáneo de la unidad de aire acondicionado mediante el mando a distancia de infrarrojos y KNX.
- Control y supervisión totales de la unidad de aire acondicionado desde KNX, como variables internas de la unidad, contador de horas de funcionamiento (para el control de mantenimiento del filtro) e indicación de errores.
- Se pueden guardar y ejecutar hasta 5 escenas desde KN
The Daikin-KNX gateway allows fully bi-directional communication between Daikin AC Domestic units and KNX installations.
Additionally, four potential-free binary inputs provide the possibility to integrate external devices, such as window contacts or presence detectors, that allows launching internal functions focused to improve energy efficiency.
FEATURES
- KNX certified.
- Configured by ETS standard configuration tool.
- Reduced dimensions allowing a quick installation inside the Air Conditioner unit.
- Offered all the required DPT objects to be compatible with all KNX thermostats in the market.
- Energy efficiency functions, such as -timeout-, -open window- or -Occupancy-. Costs related to HVAC systems in a building are one of the highest and these functions allow to reduce them.
- Smooth integration of KNX thermostats allowing the control of the AC unit by the own temperature sensor of the thermostat.
- Simultaneous control of the AC unit by the IR remote controller and by KNX.
- Total control and monitoring of the AC unit from KNX, including AC unit-s internal variables, running hours counter (for filter maintenance control) and error indication.
- Up to 5 scenes can be saved and executed from KNX.
Das Daikin-KNX Gateway ermöglicht eine vollständig bidirektionale Kommunikation zwischen Daikin AC Domestic Units und KNX Installationen.
Zusätzlich bieten vier potenzialfreie Binäreingänge die Möglichkeit, externe Geräte wie Fensterkontakte oder Präsenzmelder zu integrieren, wodurch interne Funktionen eingeleitet werden können, die auf die Verbesserung der Energieeffizienz ausgerichtet sind.
MERKMALE
- KNX-zertifiziert
- Konfiguriert mit dem ETS-Standard-Konfigurationtool
- Reduzierte Abmessungen, die eine schnelle Installation im Inneren der Klimaanlage ermöglichen
- Bietet alle erforderlichen DPT-Objekte, um mit allen KNX-Thermostaten auf dem Markt kompatibel zu sein
- Energieeffizienzfunktionen, wie "Timeout", "Fenster öffnen" oder "Belegung". Die Kosten im Zusammenhang mit HLK-Systemen in einem Gebäude gehören zu den höchsten, und diese Funktionen ermöglichen es, sie zu reduzieren
- Die nahtlose Integration von KNX-Thermostaten ermöglicht die Steuerung der Klimaanlage durch den eigenen Temperatursensor des Thermostaten
- Simultane Steuerung der AC-Einheit durch die IR-Fernbedienung und durch KNX
- Vollständige Steuerung und Überwachung der Klimageräte über KNX, einschließlich der internen Variablen der Klimageräte, des Betriebsstundenzählers (zur Kontrolle der Filterwartung) und der Fehleranzeige.
- Bis zu 5 Szenen können gespeichert und von KNX aus ausgeführt werden
