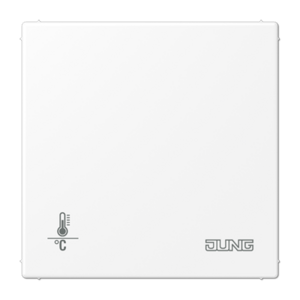

LS range
KNX room autostat
Duroplastic (scratch-proof) glossy
with integrated BCU
with integrated push-button interface 4-gang
without rotary knob for set point adjustment
without any operational elements
Only with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Heating, A/C, ventilation
Product type: Regulator
Intended use
- Single-room temperature control in KNX installations
- Installation in flush box with dimensions according to DIN 49073
Product characteristics
- Measurement of room temperature and comparison with setpoint temperature
- Setpoint specification by selection of the operating mode
- Operating modes: comfort, standby, night operation, frost/heat protection
- Heating and cooling mode
- Heating and cooling with basic and additional step
- Operation solely via the bus
- Push-button interface with four inputs or two outputs (0.8 mA) and two inputs, e.g. for window contacts, push-buttons, LEDs, etc.
- Function of the inputs: switching, dimming, shutter control, light scene extension, brightness or temperature value transmitter
- Optional: External temperature sensor (accessory ref.-no.: FF 7.8) connectable to input 4.
LS range
KNX room autostat
Duroplastic (scratch-proof) glossy
with integrated BCU
with integrated push-button interface 4-gang
without rotary knob for set point adjustment
without any operational elements
Only with the ETS 3.0d version or later versions the full functionality will be available.
ETS product family: Heating, A/C, ventilation
Product type: Regulator
Intended use
- Single-room temperature control in KNX installations
- Installation in flush box with dimensions according to DIN 49073
-
Product characteristics
- Measurement of room temperature and comparison with setpoint temperature
- Setpoint specification by selection of the operating mode
- Operating modes: comfort, standby, night operation, frost/heat protection
- Heating and cooling mode
- Heating and cooling with basic and additional step
- Operation solely via the bus
- Push-button interface with four inputs or two outputs (0.8 mA) and two inputs, e.g. for window contacts, push-buttons, LEDs, etc.
- Function of the inputs: switching, dimming, shutter control, light scene extension, brightness or temperature value transmitter
- Optional: External temperature sensor (accessory ref.-no.: FF 7.8) connectable to input 4.
Controlador PI climatización KNX
con acoplador de bus integrado
con entrada binaria 4 fases
sin rueda de ajuste
Este controlador no se puede manipular desde fuera.
A partir de la versión ETS3.0d, se cuenta con una completa funcionalidad con el software de puesta en funcionamiento KNX.
Familia: sensores físicos
Producto: temperatura
Uso conforme a lo previsto
- Regulación de la temperatura en una sala individual en instalaciones KNX
- Montaje en caja de empotrar con dimesiones según DIN 49073
Características del producto
- Medición de la temperatura ambiente y comparación con la temperatura nominal
- Especificación del valor nominal mediante la selección del modo de funcionamiento
- Modos de funcionamiento: confort, standby, noche, protección contra heladas/calor
- Modo de calefacción y refrigeración
- Calefacción y refrigeración con nivel básico y adicional
- Manejo exclusivo a través del bus
- Interfaz de pulsador con cuatro entradas o dos salidas y dos entradas, p. ej., para contactos de ventana, pulsadores, LED, etc.
- Función de las entradas: conmutación, regulación de luz, control de persianas, entrada auxiliar de escenas de luz, transmisor de valores de luminosidad o de temperatura
- Opcional: conexión de sensor externo de temperatura (accesorio ref.: FF 7.8)
