Meanwell offers a range of LED drivers with direct KNX connection! Forget about using LED controllers or DALI gateways...

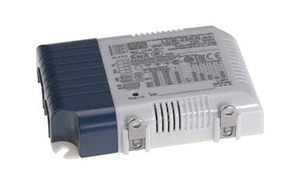

The LCM-25KN series is a 25W AC/DC output LED driver in constant current mode (multiple levels selectable by DIP switch), with direct connection to the KNX bus.
It works in the voltage range of 180-277V AC and offers different current levels ranging from 350mA to 1050mA.
Thanks to the efficiency of up to 85%, with the fanless design, the entire series is capable of operating between -30ºC and +85ºC of temperature under free air convection.
The LCM-25KN is equipped with a separate push button interface, operating hours counter, power consumption forwarding, constant dimming, and multi-driver synchronization to provide flexibility in LED lighting system design.
Featured functions:
- Output in constant current mode with multiple levels selectable by DIP switch
- Flicker free system
- Supports emergency lighting (EL)
- Fault monitoring and reporting: Lamp or 230V AC power failure
- Constant light regulation
- KNX pushbutton interface with 230V AC input
- Synchronization of up to 10 units.
- KNX functions: Manual regulation, status sending, operating hours, energy consumption sending, logarithmic/linear curve selection, KNX scenes, etc.
- 3 years warranty
Meanwell ofrece una gama de controladores LED con conexión KNX directa! Olvídate de utilizar controladores LED o pasarelas DALI...
La serie LCM-25KN es un driver LED de 25W AC/DC de salida en modo de corriente constante (múltiples niveles seleccionables por DIP swtich), con conexión directa al bus KNX.
Funciona en el rango de tensión de 180-277V AC y ofrece diferentes niveles de corriente que oscilan entre 350mA y 1050mA.
Gracias a la eficiencia de hasta el 85%, con el diseño sin ventilador, toda la serie es capaz de operar entre -30ºC y +85ºC de temperatura bajo convección de aire libre.
El LCM-25KN está equipado con un interfaz de pulsador independiente, contador de horas de funcionamiento, envío de consumo de energía, regulación constante de luz y sincronización con múltiples drivers para proporcionar flexibilidad en el diseño del sistema de iluminación LED.
Funciones destacadas:
- Salida en modo de corriente constante con múltiples niveles seleccionables mediante interruptor DIP (350, 500, 600, 700, 900 ó 1050mA.)
- Sistema libre de parpadeos
- Soporta iluminación de emergencia (EL)
- Supervisión y notificación de fallos: Lámpara o fallo de tensión 230V AC
- Regulación constante de luz
- Interfaz de pulsador KNX con entrada a 230V AC
- Sincronización de hasta 10 unidades.
- Funciones KNX: Regulación manual, envio de estados, horas de funcionamiento, envío de consumo de energía, selección de curva logarítmica/lineal, escenas KNX,.. etc.
- 3 años de garantía
Meanwell offers a range of LED drivers with direct KNX connection! Forget about using LED controllers or DALI gateways...
The LCM-25KN series is a 25W AC/DC output LED driver in constant current mode (multiple levels selectable by DIP switch), with direct connection to the KNX bus.
It works in the voltage range of 180-277V AC and offers different current levels ranging from 350mA to 1050mA.
Thanks to the efficiency of up to 85%, with the fanless design, the entire series is capable of operating between -30ºC and +85ºC of temperature under free air convection.
The LCM-25KN is equipped with a separate push button interface, operating hours counter, power consumption forwarding, constant dimming, and multi-driver synchronization to provide flexibility in LED lighting system design.
Featured functions:
- Output in constant current mode with multiple levels selectable by DIP switch
- Flicker free system
- Supports emergency lighting (EL)
- Fault monitoring and reporting: Lamp or 230V AC power failure
- Constant light regulation
- KNX pushbutton interface with 230V AC input
- Synchronization of up to 10 units.
- KNX functions: Manual regulation, status sending, operating hours, energy consumption sending, logarithmic/linear curve selection, KNX scenes, etc.
- 3 years warranty
Meanwell bietet eine Reihe von LED-Treibern mit direkter KNX-Verbindung an! Vergessen Sie die Verwendung von LED-Controllern oder DALI-Gateways ...
Die LCM-25KN-Serie ist ein LED-Treiber mit 25 W AC/DC-Ausgang im Konstantstrommodus (mehrere Stufen wählbar per DIP-Schalter) mit direktem Anschluss an den KNX-Bus.
Es arbeitet im Spannungsbereich von 180-277 V AC und bietet verschiedene Stromstärken von 350 mA bis 1050 mA.
Dank des Wirkungsgrads von bis zu 85 % und des lüfterlosen Designs kann die gesamte Serie bei Temperaturen zwischen -30 ºC und +85 ºC unter freier Luftkonvektion betrieben werden.
Das LCM-25KN ist mit einer separaten Tasterschnittstelle, Betriebsstundenzähler, Stromverbrauchsweiterleitung, konstantem Dimmen und Multi-Treiber-Synchronisation ausgestattet, um Flexibilität bei der Gestaltung von LED-Beleuchtungssystemen zu bieten.
Funktionalität:
- Ausgang im Konstantstrommodus mit mehreren über DIP-Schalter wählbaren Pegeln
- Flimmerfreies System
- Unterstützt Notbeleuchtung (EL)
- Fehlerüberwachung und -meldung: Lampen- oder 230-V-Wechselstromausfall
- Konstantlichtregelung
- KNX Tasterschnittstelle mit 230V AC Eingang
- Synchronisation von bis zu 10 Einheiten.
- KNX Funktionen: Manuelle Regelung, Status senden, Betriebsstunden, Energieverbrauch senden, logarithmische/lineare Kurvenauswahl, KNX Szenen, etc.
- 3 Jahre Garantie
