LS range

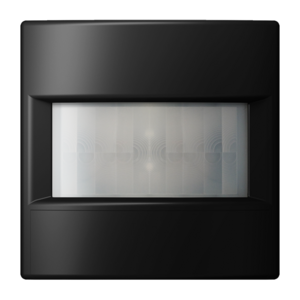

KNX automatic switch 1.1 m
Thermoplastic (breakproof) high gloss
Universal
for bus coupling unit 3 ref. no.: 2073 U
ETS product family: Physical sensors
Product type: Movement
Intended use
- Requirement oriented control of lighting and other electrical loads in interiors
- Mounting on bus coupling unit 3 (ref. no.: 2073 U)
Product characteristics
- Automatic switching of lighting depending on the thermal movement and ambient brightness
- 2 PIR sensors
- Detection range 180°
- Integrated brightness sensor
- Switch off brightness can be set
- Output functions: Switching, staircase function, switching with forced position, value transmitter, light scene extension, operating mode setting for room temperature controller
- Extension of the detection area by way of operating several devices as main unit or extension unit
- Sensitivity can be set manually
- Status LEDs
- Manual switching on the device
- Up to half of the detection area can be screened off (cover or parameter setting)
Detector KNX 1,10 m
Universal
para acoplador de bus 3 ref.: 2073 U
Familia: sensores físic.
Producto: movimiento
Uso conforme a lo previsto
- Regulación de la iluminación y otros consumidores eléctricos en espacios interiores en función de las necesidades
- Montaje sobre acoplador de bus 3 (ref.: 2073 U)
Características del producto
- Conmutación automática de la iluminación en función del movimiento térmico y de la luminosidad ambiental
- 2 sensores PIR
- Campo de detección 180°
- Sensor de luminosidad integrado
- Luminosidad de desconexión ajustable
- Funciones de salida: conmutación, función de escalera, conmutación con posición forzada, transmisor de valores, entrada auxiliar de escenas de luz, especificación del modo de funcionamiento para el regulador de la temperatura ambiente
- Ampliación del campo de detección mediante utilización de varios dispositivos como entrada principal y auxiliar
- Sensibilidad ajustable
- LEDs de estado
- Manejo manual en el aparato
- Se puede reducir el campo de detección a la mitad (mediante máscara o por software
Serie LS
KNX Automatikschalter 1,10 m
Thermoplast (bruchsicher) hochglänzend
Universal
für Busankoppler 3 Art. Nr.: 2073 U
ETS Produktfamilie Phys. Sensoren
Produkttyp Bewegungsmelder
Bestimmungsgemäßer Gebrauch
- Bedarfsgerechtes Steuern von Beleuchtung und anderen elektrischen Verbrauchern in Innenräumen
- Montage auf Busankoppler 3 (Art. Nr.: 2073 U)
Produkteigenschaften
- Automatisches Schalten von Beleuchtung, abhängig von Wärmebewegung und Umgebungshelligkeit
- 2 PIR Sensoren
- Erfassungsbereich 180°
- Integrierter Helligkeitssensor
- Ausschalthelligkeit einstellbar
- Ausgangsfunktionen: Schalten, Treppenhausfunktion, Schalten mit Zwangsstellung, Wertgeber, Lichtszenennebenstelle, Betriebsartvorgabe für Raumtemperaturregler
- Erweiterung des Erfassungsbereichs durch Betrieb mehrerer Geräte als Haupt und Nebenstelle
- Empfindlichkeit manuell einstellbar
- Status LEDs
- Manuelles Schalten am Gerät
- Erfassungsfeld zur Hälfte abblendbar (Blende oder Parametereinstellung)
